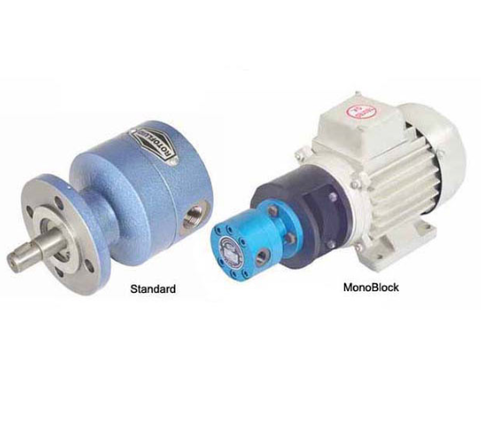

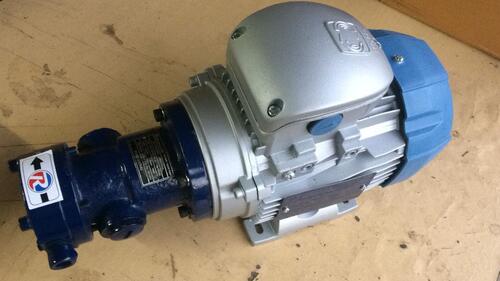

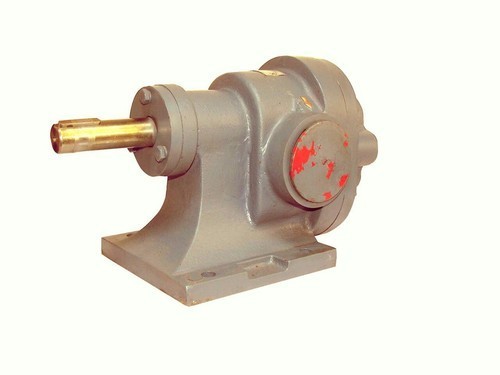

Gear Pump-
We are ISO9001 manufacturing comp Gany in Pune-India.We provide a range of high quality ear Pumps, which are widely used for hydraulic fluid power applications in various industries. Our range of gear pumps are suitable for handling viscous or semi viscous liquids. These gear pumps are fabricated using premium quality material which is procured from the reliable vendors of the market. Perfectly designed, these compact gear pumps are high in performance.
Features:
All Positive displacement rotary gear pumps are self priming pumps with suction lift of 5 meters at mean viscosity and speed 1440 rpm
The helical gear design delivers constant volume without and pulsation. It also reduces internal slippage and gives high volumetric efficiency.
Compact in size and highly economical
All these are self lubricated pumps recommended for use where the liquid to be transferred has lubrication properties Hence the bearing are lubricated by the pumping fluid and do not need any external lubrication.
Easy maintenance due to availability and interchangeability of spares.
All gear pumps are designed and assembled and with close tolerances to reduce the mechanical losses, thus it consumes less power and operates at higher efficiency.
Range:
Pressure: Up to 10 Kg / cm2
Pipe Size: 1/4 BSP to 3 BSP
Applications:
As stainless steel construction especially suitable for edible material,acidic oils,chemicals,soap solutions etc.
Rotary gear pumps are useful for handling following viscous and semi viscous liquid.
Clean lube oil, Castor oil, Coconut oil, Ground nut oil, Cotton seed oil and Hydraulic oil.
All kind of vegetable oils.
Paints & Varnish , Viscous Chemical , Printing Ink.
All Kind of fish and animal oils.
Soap Solutions , Glycerin , Glycol and Glue
Sugar molasses and syrups.
Rotary gear pumps are widely used in paper mills, refineries, Steel mills and textile Industries.
